#include <recog.h>

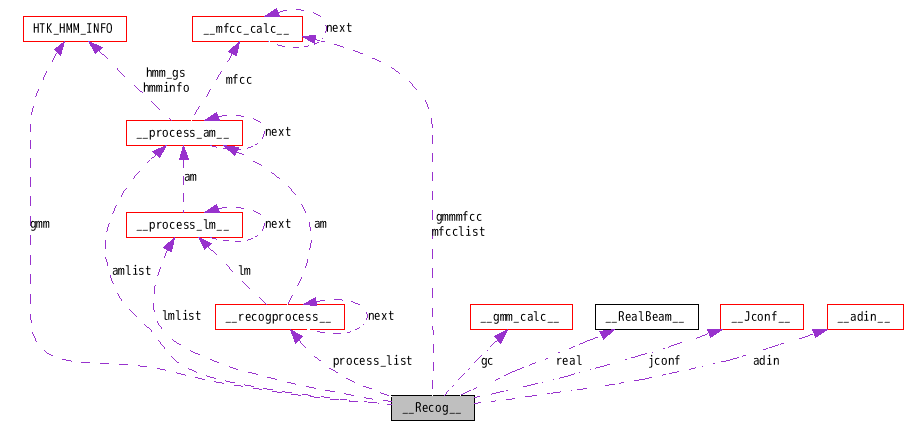

__Recog__のコラボレーション図
変数 | |
| Jconf * | jconf |
| User-specified configuration parameters | |
| ADIn * | adin |
| A/D-in buffers | |
| RealBeam | real |
| Work area for the realtime processing of first pass | |
| MFCCCalc * | mfcclist |
| Linked list of MFCC calculation/reading instances | |
| PROCESS_AM * | amlist |
| Linked list of acoustic model instances | |
| PROCESS_LM * | lmlist |
| Linked list of language model instances | |
| RecogProcess * | process_list |
| Linked list of recognition process instances | |
| boolean | process_segment |
| TRUE when engine is processing a segment (for short-pause segmentation) | |
| SP16 * | speech |
| Input speech data | |
| int | speechalloclen |
| Allocate length of speech | |
| int | speechlen |
| Input length in samples | |
| int | peseqlen |
| Input length in frames | |
| HTK_HMM_INFO * | gmm |
| GMM definitions | |
| MFCCCalc * | gmmmfcc |
| Pointer to MFCC instance for GMM | |
| GMMCalc * | gc |
| Work area for GMM calculation | |
| boolean | process_active |
| Status flag indicating whether the recognition is alive or not. | |
| boolean | process_want_terminate |
| If set to TRUE, Julius/Julian stops recognition immediately, terminating the currenct recognition process, and enter into disabled status. | |
| boolean | process_want_reload |
| If set to TRUE, Julius/Julian stops recognition softly. | |
| short | gram_switch_input_method |
| When to refresh the global lexicon if received while recognition for DFA | |
| boolean | process_online |
| TRUE if audio stream is now open and engine is either listening audio stream or recognizing a speech. | |
| boolean(* | calc_vector )(MFCCCalc *, SP16 *, int) |
| Function pointer to parameter vector computation for realtime 1st pass. | |
| boolean | triggered |
| TRUE when recognition triggered and some recognition started, FALSE if engine terminated with no input. | |
| void(* | callback_function [SIZEOF_CALLBACK_ID][MAX_CALLBACK_HOOK])() |
| Callback entry point | |
| void * | callback_user_data [SIZEOF_CALLBACK_ID][MAX_CALLBACK_HOOK] |
| Callback user data | |
| int | callback_function_num [SIZEOF_CALLBACK_ID] |
| Numbers of callbacks registered | |
| int | callback_list_code [MAX_CALLBACK_HOOK *SIZEOF_CALLBACK_ID] |
| Callback function code list | |
| int | callback_list_loc [MAX_CALLBACK_HOOK *SIZEOF_CALLBACK_ID] |
| Callback function location list | |
| int | callback_num |
| Number of callbacks | |
| void * | hook |
| User-defined data hook. | |
Status flag indicating whether the recognition is alive or not.
If TRUE, the process is currently activated, either monitoring an audio input or recognizing the current input. If FALSE, the recognition is now disabled until some activation command has been arrived from client. While disabled, all the inputs are ignored.
If set to FALSE in the program, Julius/Julian will stop after the current recognition ends, and enter the disabled status.
参照元 adin_cut_callback_store_buffer()・j_recog_new()・j_recognize_stream_core()・j_request_pause()・j_request_resume()・j_request_terminate()・schedule_grammar_update().
If set to TRUE, Julius/Julian stops recognition softly.
If it is performing recognition of the 1st pass, it immediately segments the current input, process the 2nd pass, and output the result. Then it enters the disabled status.
参照元 callback_check_in_adin()・j_process_activate()・j_process_activate_by_id()・j_process_add_lm()・j_process_am_remove()・j_process_deactivate()・j_process_deactivate_by_id()・j_process_lm_remove()・j_process_remove()・j_recog_new()・j_request_pause()・j_request_terminate()・j_reset_reload()・schedule_grammar_update().
TRUE if audio stream is now open and engine is either listening audio stream or recognizing a speech.
FALSE on startup or when in pause specified by a module command.
| boolean(* __Recog__::calc_vector)(MFCCCalc *, SP16 *, int) |
Function pointer to parameter vector computation for realtime 1st pass.
default: RealTimeMFCC() in realtime-1stpass.c
参照元 j_recog_new()・j_regist_user_param_func()・RealTimePipeLine().
| void* __Recog__::hook |
