#include <hmm.h>

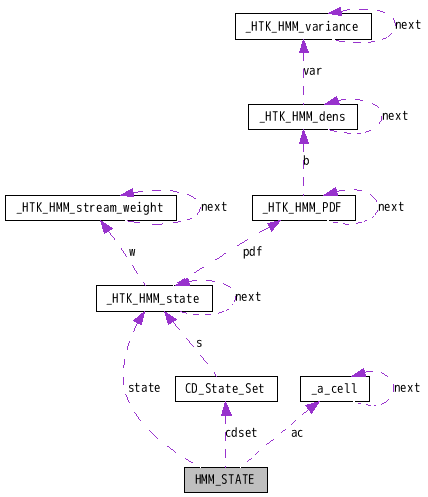

HMM_STATEのコラボレーション図
変数 | |
| A_CELL * | ac |
| List of transition arcs from this state | |
| union { | |
| HTK_HMM_State * state | |
| Pointer to the mapped physical HMM | |
| CD_State_Set * cdset | |
| Pointer to the pseudo HMM | |
| } | out |
| Pointer to corresponding output state definition | |
| boolean | is_pseudo_state |
| TRUE if pseudo HMM is assigned, FALSE if physical HMM is assigned | |
| union { ... } HMM_STATE::out |
Pointer to corresponding output state definition
When a triphone model is used, if this state is located as a part of phoneme HMM on word-edge, the corresponding pseudo-triphone, i.e. "*-e+g", "k-a+*", should be assigned. Otherwise, i.e. if this state is located at internal position of a word, pointer to the corresponding physical (actually defined) HMM will be assigned. When a triphone model is used, phoneme HMMs on word-edge should be pseudo-triphone, i.e. "*-e+g", "k-a+*". In this case, the belonging state should hold the output probability function in CD_State_Set. Otherwise, i.e. if this state is located at internal position of a word, pointer to the corresponding physical (actually defined) HMM will be assigned.
