構造体 _HMM_logical
[Context-Dependent HMM set]

Logical HMM to map logical names to physical/pseudo HMM [詳細]

#include <htk_hmm.h>

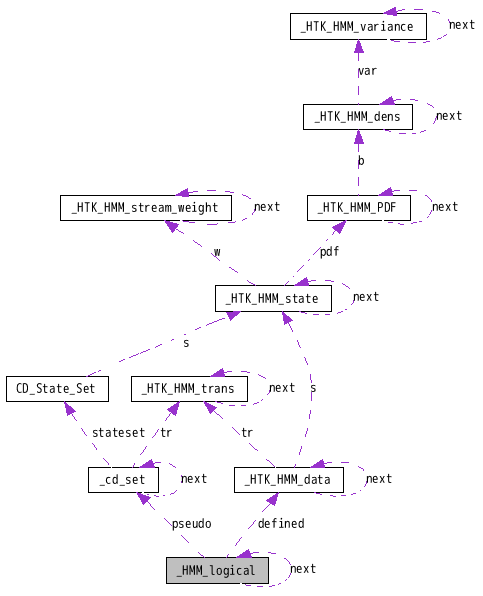

_HMM_logicalのコラボレーション図

Collaboration graph
[凡例]

変数

char * name
 Name string of this logical HMM
boolean is_pseudo
 TRUE if this is mapped to pseudo HMM
union {
   HTK_HMM_Data *   defined
 pointer to the mapped physical HMM
   CD_Set *   pseudo
 pointer to the mapped pseudo HMM
body
 Actual body of state definition
_HMM_logicalnext
 Pointer to next data, NULL if last

説明

Logical HMM to map logical names to physical/pseudo HMM

This data maps logical HMM name to physical (defined) HMM or pseudo HMM. The logical HMM names are basically loaded from HMMList mapping file. Biphone/monophone HMM names, not listed in the HMMList file, are mapped to pseudo phones, which represents the context-dependent HMM set.

For example, if logical biphone HMM name "e-k" is defined in HMM definition file or its mapping is specified in the HMMList file, the Logical HMM name "e-k" will be mapped to the corresponding defined HMM. If "e-k" does not exist in both HMM definition file and HMMList file, triphones whose name matches "e-k+*" will be gathered to phone context-dependent HMM set "e-k", and the logical HMM name "e-k" will be mapped to this HMM set.

The context-dependent HMM is also called a "pseudo" phone in Julius.

htk_hmm.h295 行で定義されています。


この構造体の説明は次のファイルから生成されました:
