adin_mic_linux_alsa.c File Reference

Microphone input on Linux/ALSA. More...

#include <sent/stddefs.h>
#include <sent/adin.h>
#include <sys/ioctl.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <alsa/asoundlib.h>

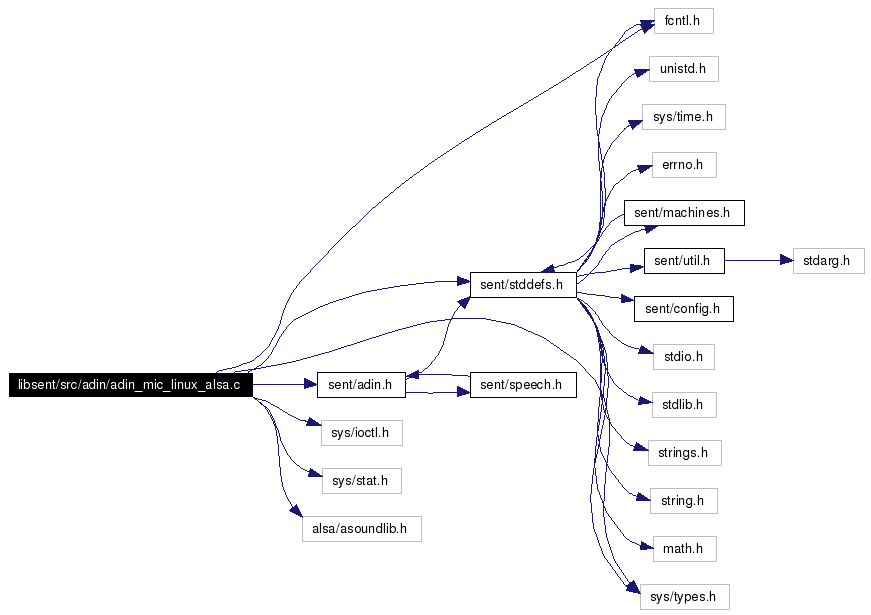

Include dependency graph for adin_mic_linux_alsa.c:

Go to the source code of this file.

Functions
boolean	adin_mic_standby (int sfreq, void *dummy)
static int	xrun_recovery (snd_pcm_t *handle, int err)
boolean	adin_mic_start ()
boolean	adin_mic_stop ()
int	adin_mic_read (SP16 *buf, int sampnum)
	Read samples from the daemon.
Variables
static snd_pcm_t *	handle
	Audio handler.
static snd_pcm_hw_params_t *	hwparams
	Pointer to device hardware parameters.
static char *	pcm_name = "hw:0,0"
	Name of the PCM device.
static boolean	need_swap
	Whether samples need byte swap.
static int	latency = 50
	Lantency time in msec.
static struct pollfd *	ufds
	Poll descriptor.
static int	count
	Poll descriptor count.

---

Detailed Description

Microphone input on Linux/ALSA.

Author:

Akinobu LEE

Date:

Sun Feb 13 16:18:26 2005

Low level I/O functions for microphone input on Linux using Advanced Linux Sound Architechture (ALSA) API, developed on version 0.9.x. If you want to use this API, please specify "--with-mictype=alsa" options at compilation time to configure script.

Julius does not alter any mixer device setting at all on Linux. You should configure the mixer for recording source (mic/line) and recording volume correctly using other audio tool such as alsamixer.

Note that sound card should support 16bit monaural recording, and multiple cards are not supported (in that case the first one will be used).

See also:

http://www.alsa-project.org/

Revision

1.1.1.1

Definition in file adin_mic_linux_alsa.c.

---

Function Documentation

boolean adin_mic_standby (  int  sfreq, void *  dummy )

Device initialization: check device capability and open for recording. Parameters: sfreq  [in] required sampling frequency. dummy  [in] a dummy data Returns: TRUE on success, FALSE on failure. Definition at line 80 of file adin_mic_linux_alsa.c.

static int xrun_recovery (  snd_pcm_t *  handle, int  err )  [static]

Error recovery when PCM buffer underrun or suspend. Parameters: handle  [in] audio handler err  [in] error code Returns: 0 on success, otherwise the given errno. Definition at line 270 of file adin_mic_linux_alsa.c. Referenced by adin_mic_start().

boolean adin_mic_start (   )

Start recording. Returns: TRUE on success, FALSE on failure. Definition at line 296 of file adin_mic_linux_alsa.c.

boolean adin_mic_stop (   )

Stop recording. Returns: TRUE on success, FALSE on failure. Definition at line 342 of file adin_mic_linux_alsa.c.

int adin_mic_read (  SP16 *  buf, int  sampnum )

Read samples from the daemon. Try to read sampnum samples and returns actual number of recorded samples currently available. This function will block until at least one sample can be obtained. Parameters: buf  [out] samples obtained in this function sampnum  [in] wanted number of samples to be read Returns: actural number of read samples, -2 if an error occured. Definition at line 360 of file adin_mic_linux_alsa.c.

---
