chkhmmlist.c File Reference

Check existence of all possible triphone in HMMList. More...

#include <sent/htk_hmm.h>
#include <sent/vocabulary.h>

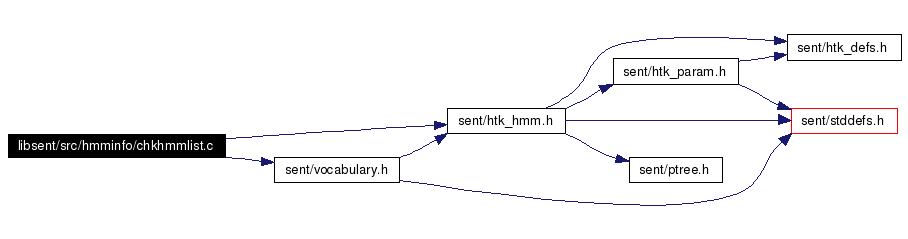

Include dependency graph for chkhmmlist.c:

Go to the source code of this file.

Functions
void	make_hmm_basephone_list (HTK_HMM_INFO *hmminfo)
static void	print_callback_detail (void *x)
static void	print_callback_name (void *x)
void	print_all_basephone_detail (HMM_basephone *base)
void	print_all_basephone_name (HMM_basephone *base)
static void	count_callback (void *x)
static void	count_all_phone (HMM_basephone *base)
static void	mark_word_edge (WORD_INFO *winfo, HMM_basephone *base)
static void	add_to_error (char *lostname)
static void	print_error_callback (void *x)
static void	triphone_callback_normal (void *x)
static void	triphone_callback_right (void *x)
static void	triphone_callback_left (void *x)
void	test_interword_triphone (HTK_HMM_INFO *hmminfo, WORD_INFO *winfo)
void	make_base_phone (HTK_HMM_INFO *hmminfo, WORD_INFO *winfo)
	Build basephone information.
void	print_phone_info (HTK_HMM_INFO *hmminfo)
Variables
static int	bncnt
	Count of basephone that can appear at the beginning of sentence.
static int	edcnt
	Count of basephone that can appear at the end of sentence.
static HTK_HMM_INFO *	local_hmminfo
	Local work area to hold HTK HMM data.
static WORD_INFO *	local_winfo
	Local work area to hold word dictionary.
static APATNODE *	local_root
	Local work area to hold basephone index root.
static WORD_ID	current_w
	Local work area to hold current word ID.
static char	gbuf [MAX_HMMNAME_LEN]
	Local work area for phone name handling.
static APATNODE *	error_root
	Error phone list.
static int	error_num
	Number of encountered error phone.

---

Detailed Description

Check existence of all possible triphone in HMMList.

Author:

Akinobu LEE

Date:

Tue Feb 15 19:17:51 2005

These functions check whether all the possible triphones that may appear while recognition process is fully defined or mapped in HMM definition file and HMMList file.

Word dictionary is considered for the test. Only triphones that can appear as word-internal triphones and cross-word triphones on the given dictionary will be considered.

Revision

1.1.1.1

Definition in file chkhmmlist.c.

---

Function Documentation

void make_hmm_basephone_list (  HTK_HMM_INFO *  hmminfo  )

Build a list of base phones by gathering center phones of the defined HMM. Parameters: hmminfo  [i/o] HMM definition data Definition at line 47 of file chkhmmlist.c. Referenced by init_hmminfo().

static void print_callback_detail (  void *  x  )  [static]

Traverse function callback to output detailed information of a basephone in text to stdout. Parameters: x  [in] pointer to a basephone data. Definition at line 82 of file chkhmmlist.c. Referenced by print_all_basephone_detail().

static void print_callback_name (  void *  x  )  [static]

Traverse function callback to output name of a basephone in text to stdout. Parameters: x  [in] pointer to a basephone data. Definition at line 94 of file chkhmmlist.c. Referenced by print_all_basephone_name().

void print_all_basephone_detail (  HMM_basephone *  base  )

Output all basephone informations to stdout. Parameters: base  [in] pointer to the top basephone data holder. Definition at line 105 of file chkhmmlist.c. Referenced by hmm_check().

void print_all_basephone_name (  HMM_basephone *  base  )

Output all basephone names to stdout Parameters: base  [in] pointer to the top basephone data holder. Definition at line 115 of file chkhmmlist.c. Referenced by hmm_check().

static void count_callback (  void *  x  )  [static]

Traverse callback function to increment the number of base phones that can appear at beginning of word and end of word. Parameters: x  [in] pointer Definition at line 130 of file chkhmmlist.c. Referenced by count_all_phone().

static void count_all_phone (  HMM_basephone *  base  )  [static]

Count the total number of base phones that can appear at beginning of word and end of word. Parameters: base  Definition at line 144 of file chkhmmlist.c. Referenced by make_base_phone().

static void mark_word_edge (  WORD_INFO *  winfo, HMM_basephone *  base )  [static]

Mark each basephone if it can appear at beginning or end of a word. Parameters: winfo  [in] word dictinary base  [in] top basephone data holder Definition at line 159 of file chkhmmlist.c. Referenced by make_base_phone().

static void add_to_error (  char *  lostname  )  [static]

Add unknown (error) triphone to error list. Parameters: lostname  [in] name of error triphone. Definition at line 210 of file chkhmmlist.c. Referenced by triphone_callback_normal(), triphone_callback_right(), and voca_load_htkdict_line().

static void print_error_callback (  void *  x  )  [static]

Traverse callback function to output error phone name. Parameters: x  [in] pointer to error phone name Definition at line 231 of file chkhmmlist.c. Referenced by test_interword_triphone().

static void triphone_callback_normal (  void *  x  )  [static]

Traverse callback function to check if the cross-word triphones "basephone x - word[current_w]" and "word[current_w] + basephone x" exist, according to the basephone mark. Parameters: x  [in] a basephone Definition at line 245 of file chkhmmlist.c. Referenced by test_interword_triphone().

static void triphone_callback_right (  void *  x  )  [static]

Traverse callback function to check if the cross-word triphone "basephone x - word[current_w] + basephone x" exist, for words with only one phone: right part. Parameters: x  [in] a basephone Definition at line 287 of file chkhmmlist.c. Referenced by triphone_callback_left().

static void triphone_callback_left (  void *  x  )  [static]

Traverse callback function to check if the cross-word triphone "basephone x - word[current_w] + basephone x" exist, for words with only one phone: left part. Parameters: x  [in] a basephone Definition at line 316 of file chkhmmlist.c. Referenced by test_interword_triphone().

void test_interword_triphone (  HTK_HMM_INFO *  hmminfo, WORD_INFO *  winfo )

Top function to check if all the possible triphones on given word dictionary actually exist in the logical HMM. Parameters: hmminfo  [in] HMM definition information, with basephone list. winfo  [in] word dictionary information Definition at line 339 of file chkhmmlist.c. Referenced by hmm_check().

void make_base_phone (  HTK_HMM_INFO *  hmminfo, WORD_INFO *  winfo )

Build basephone information. Extract base phones from HMM definition, mark them whether they appear on word head or word tail, and count the number. Parameters: hmminfo  [i/o] HMM definition information, basephone list will be added. winfo  [in] word dictionary information Definition at line 380 of file chkhmmlist.c. Referenced by hmm_check().

void print_phone_info (  HTK_HMM_INFO *  hmminfo  )

Output general information concerning phone mapping in HMM definition. Parameters: hmminfo  [in] HMM definition data. Definition at line 394 of file chkhmmlist.c. Referenced by hmm_check().

---
