libsent/include/sent/tcpip.h File Reference

Definitions relating TCP/IP Networking. More...

#include <errno.h>
#include <netdb.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <sys/un.h>
#include <arpa/inet.h>
#include <sys/file.h>
#include <sys/types.h>
#include <fcntl.h>

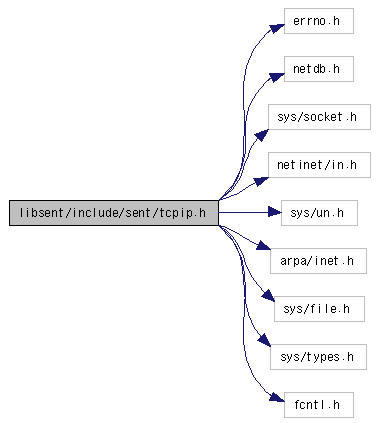

Include dependency graph for tcpip.h:

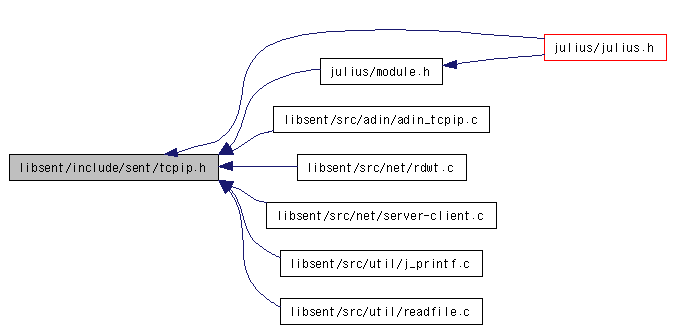

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	ADINNET_PORT   5530
	Default port number of A/D-in server (adinnet).
#define	NETAUDIO_DEVNAME   "localhost:0"
	Default Host/unit name for NetAudio/DatLink input.
#define	CONNECTION_RETRY_TIMES   5
	Retry time when client connection failed */.
#define	CONNECTION_RETRY_INTERVAL   2
	Interval time between retry in seconds.
Functions
int	rd (int fd, char *data, int *len, int maxlen)
	Read a data segment from a network stream.
int	wt (int fd, char *data, int len)
	Write a data segment to a network stream.
int	ready_as_server (int port_num)
int	accept_from (int sd)
	Wait for a request from client.
int	make_connection (char *hostname, int port_num)
int	make_connection_unix (char *address)
int	close_socket (int sd)
void	cleanup_socket ()

---

Detailed Description

Definitions relating TCP/IP Networking.

Author:

Akinobu LEE

Date:

Sat Feb 12 12:26:15 2005

Revision

1.4

Definition in file tcpip.h.

---

Function Documentation

int rd	(	int	fd,
		char *	data,
		int *	len,
		int	maxlen
	)

Read a data segment from a network stream.

This function will block until the specified length has been received.

Parameters:

	fd	[in] file descriptor
	data	[out] buffer to store the read data
	len	[out] received length in bytes
	maxlen	[in] maximum length of data buffer in bytes

Returns:

received data length in bytes, or -1 on error.

Definition at line 43 of file rdwt.c.

Referenced by adin_tcpip_read().

int wt	(	int	fd,
		char *	data,
		int	len
	)

Write a data segment to a network stream.

Parameters:

	fd	[in] file descriptor
	data	[in] buffer that holds data to write
	len	[out] received length in bytes

Returns:

actually written data length in bytes, or -1 on error.

Definition at line 92 of file rdwt.c.

Referenced by adin_tcpip_send_pause(), adin_tcpip_send_resume(), and adin_tcpip_send_terminate().

int ready_as_server

(

int

port_num

)

Prepare as a server creating a socket for client connection.

Parameters:

port_num

[in] network port to listen.

Returns:

socket descriptor, or -1 if failed to create socket, -2 if failed to bind, or -3 if failed to listen.

Definition at line 40 of file server-client.c.

Referenced by adin_tcpip_standby(), and main_module_loop().

int accept_from

(

int

sd

)

Wait for a request from client.

This function blocks until a connection request comes.

Parameters:

sd

[in] listening server socket descpritor

Returns:

the connected socket descriptor.

Definition at line 116 of file server-client.c.

Referenced by adin_tcpip_begin(), and main_module_loop().

int make_connection	(	char *	hostname,
		int	port_num
	)

Make a connection to a server.

Parameters:

	hostname	[in] server host (host name or numeric IP address)
	port_num	[in] port number

Returns:

new socket descriptor, -1 if fails to prepare socket, -2 if fails to connect, -3 if host name is wrong.

Definition at line 161 of file server-client.c.

int make_connection_unix

(

char *

address

)

Make a connection to a server using unix domain socket.

Parameters:

address

[in] unix domain socket address (path)

Returns:

new socket descriptor, -1 if fails to prepare socket, -2 if fails to connect.

Definition at line 244 of file server-client.c.

int close_socket

(

int

sd

)

Close socket.

Parameters:

sd

[in] socket descriptor to close

Returns:

0 on success, -1 on failure.

Definition at line 277 of file server-client.c.

Referenced by adin_tcpip_end(), main_module_loop(), and module_disconnect().

void cleanup_socket

(

)

Clean up socket data at program exit.

Definition at line 293 of file server-client.c.

Referenced by j_error(), and j_exit().

---
