Julius: libjulius/src/beam.c File Reference

These are core functions of frame-synchronous beam search using a static lexicon tree, as the first pass of Julius. These functions will be called from pass1.c, to execute for each recognition process instance in turn. Functions for initialization, frame-wise recognition processing, end procedure, finding best path, detecting end of segment on short-pause segmentation mode, are defined here.

About algorithm: 1-best approximation will be performed for word context approximation, but normal word-pair approximation is also supported. With word/class N-gram, Julius computes the language score using 1-gram factoring (can be changed to 2-gram factoring if you want). With DFA grammar, Julius can compute the connection constraint of words using the category-pair constraint on the beginning of the words, since Julian makes a per-category tree lexicon. On isolated word recognition mode, the cross-word transitions are ignored.

Function Documentation

static void put_atom	(	TRELLIS_ATOM *	atom,
		WORD_INFO *	winfo
	)			`[static]`

Output a trellis word information in text (for debug).

Parameters:

	atom	[in] trellis word to output
	winfo	[in] word dictionary

Definition at line 248 of file beam.c.

static LOGPROB trace_backptr	(	WORD_ID	wordseq_rt[MAXSEQNUM],
		int *	rt_wordlen,
		TRELLIS_ATOM *	atom,
		WORD_INFO *	winfo
	)			`[static]`

Find the best word sequence in the word trellis.

This function trace back through the word trellis to the beginning of input, to find the best word sequence. The traceback starting point should be specified as a trellis word.

Parameters:

	wordseq_rt	[out] buffer to store the best word sequence as result
	rt_wordlen	[out] length of wordseq_rt
	atom	[in] a trellis word as the starting point of the traceback
	winfo	[in] word dictionary

Returns:: the total N-gram language score of the word sequence.

Definition at line 290 of file beam.c.

static void find_1pass_result	(	int	framelen,
		RecogProcess *	r
	)			`[static]`

Find best path from the first pass result and set result status.

This function find the best word sequence from the resulting word trellis of the 1st pass, and store them to result.pass1 in the recognition process instance. If no candidate was found, it sets error code -1 (recognition failure) and exit.

On short-pause segmentation, it sets error code -4 (decoder rejection) if the found best path consists of only silence words.

Also, if WORD_GRAPH is defined, this function also calls generate_lattice() to extract word graph from the word trellis.

Parameters:

	framelen	[in] frame length that has been processed
	r	[in] recognition process instance

Definition at line 368 of file beam.c.

static int compare_backscore	(	TRELLIS_ATOM **	x1,
		TRELLIS_ATOM **	x2
	)			`[static]`

qsort function to sort trellis words by their score.

Parameters:

	x1	[in] pointer to element #1
	x2	[in] pointer to element #2

Returns:: value required for qsort.

Definition at line 546 of file beam.c.

static void find_1pass_result_word	(	int	framelen,
		RecogProcess *	r
	)			`[static]`

Isolated word recognition version of find_1pass_result().

Since Julius executes only the 1st pass on Isolated word recognition mode, the result candidate will be stored as the final result.

Parameters:

	framelen	[in] frame length that has been processed
	r	[i/o] recognition process instance

Definition at line 571 of file beam.c.

static void bt_current_max	(	RecogProcess *	r,
		int	t
	)			`[static]`

Output the current best word sequence ending at a specified time frame in the course of the 1st pass.

Parameters:

	r	[i/o] recognition process instance
	t	[in] current input frame

Definition at line 860 of file beam.c.

static void bt_current_max_word	(	RecogProcess *	r,
		int	t
	)			`[static]`

Output the current best word on a specified time frame in the course of the 1st pass.

Parameters:

	r	[i/o] recognition process instance
	t	[in] current input frame

Definition at line 919 of file beam.c.

static void malloc_nodes	(	FSBeam *	d,
		int	n,
		int	ntoken_init
	)			`[static]`

Allocate initial work area for beam search on the 1st pass.

If filled while search, they will be expanded on demand.

Parameters:

	d	[i/o] work area for 1st pass recognition processing
	n	[in] number of nodes in lexicon tree
	ntoken_init	[in] number of token space to be allocated at first

Definition at line 981 of file beam.c.

static void expand_tlist ( FSBeam * d ) [static]

Re-allocate work area for beam search on the 1st pass.

Parameters:

[i/o] work area for 1st pass recognition processing

Definition at line 1009 of file beam.c.

static void prepare_nodes	(	FSBeam *	d,
		int	ntoken_step
	)			`[static]`

Clear nodes for the next input.

Julius will call this function for each input to re-set the work area for the beam search. If the size of tree lexicon has been changed since the last input, Julius will free and re-allocate the work area.

Parameters:

	d	[i/o] work area for 1st pass recognition processing
	ntoken_step	[in] required token step

Definition at line 1038 of file beam.c.

static void free_nodes ( FSBeam * d ) [static]

Free all the work area for beam search on the 1st pass.

Parameters:

[i/o] work area for 1st pass recognition processing

Definition at line 1059 of file beam.c.

static void clear_tlist	(	FSBeam *	d,
		int	tt
	)			`[static]`

Reset the token space.

Parameters:

	d	[i/o] work area for 1st pass recognition processing
	tt	[in] work area id (0 or 1)

Definition at line 1086 of file beam.c.

static void clear_tokens	(	FSBeam *	d,
		int	tt
	)			`[static]`

Clear the active token list.

Parameters:

	d	[i/o] work area for 1st pass recognition processing
	tt	[in] work area id of previous frame (0 or 1)

Definition at line 1106 of file beam.c.

static TOKENID create_token ( FSBeam * d ) [static]

Assign a new token from token space.

Parameters:

[i/o] work area for 1st pass recognition processing

Returns:: the id of the newly assigned token.

Definition at line 1132 of file beam.c.

static void node_assign_token	(	FSBeam *	d,
		int	node,
		TOKENID	tkid
	)			`[static]`

Assign token to a node on tree lexicon.

Save the token id to the specified node in the active token list. Also saves the link to the node from the token in token space.

If a token already exist on the node, it will be overridden by the new one. If WPAIR is defined, the new token will be simply added to the list of active tokens on the node.

Parameters:

	d	[i/o] work area for 1st pass recognition processing
	node	[in] node id on the tree lexicon
	tkid	[in] token id to be assigned

Definition at line 1178 of file beam.c.

static TOKENID node_exist_token	(	FSBeam *	d,
		int	tt,
		int	node,
		WORD_ID	wid
	)			`[static]`

Check if a node holds any token.

This function checks if a node on the tree lexicon already holds a token.

If WPAIR is defined, a node has multiple tokens according to the previous word context. In this case, only token with the same previous word will be checked.

Parameters:

	d	[i/o] work area for 1st pass recognition processing
	tt	[in] work area id (0 or 1)
	node	[in] node id of lexicon tree
	wid	[in] word id of previous word (ignored if WPAIR is not defined)

Returns:: the token id on the node, or TOKENID_UNDEFINED if no token has been assigned in this frame.

Definition at line 1225 of file beam.c.

static void sort_token_upward	(	FSBeam *	d,
		int	neednum,
		int	totalnum
	)			`[static]`

Sort the token space upward by score.

This function sort the whole token space in upward direction, according to their accumulated score. This function terminates sort as soon as the top neednum tokens has been found.

Parameters:

	d	[i/o] work area for 1st pass recognition processing
	neednum	[in] sort until top neednum tokens has been found
	totalnum	[in] total number of assigned tokens in the token space

Definition at line 1324 of file beam.c.

static void sort_token_downward	(	FSBeam *	d,
		int	neednum,
		int	totalnum
	)			`[static]`

Sort the token space downward by score.

This function sort the whole token space in downward direction, according to their accumulated score for hypothesis pruning.

This function terminates sort as soon as the bottom neednum tokens has been found.

Parameters:

	d	[i/o] work area for 1st pass recognition processing
	neednum	[in] sort until bottom neednum tokens has been found
	totalnum	[in] total number of assigned tokens in the token space

Definition at line 1396 of file beam.c.

static void sort_token_no_order	(	FSBeam *	d,
		int	neednum,
		int *	start,
		int *	end
	)			`[static]`

Sort the token space to find which tokens to be survived in the beam.

This function sorts the currrent tokens in the token space to find the tokens to be survived in the current frame. Only getting the top neednum tokens is required, so the sort will be terminate just after the top neednum tokens are determined. Actually, either sort_token_upward() or sort_token_downward() will be used depending of the number of needed tokens and total tokens.

Parameters:

	d	[i/o] work area for 1st pass recognition processing
	neednum	[in] number of top tokens to be found
	start	[out] start index of the top neednum nodes
	end	[out] end index of the top neednum nodes

Definition at line 1474 of file beam.c.

static boolean init_nodescore	(	HTK_Param *	param,
		RecogProcess *	r
	)			`[static]`

Generate initial hypotheses.

The initial hypothesis is: 1) winfo->head_silwid for N-gram, 2) all words that can be at beginning of sentence for DFA, or 3) all words in dictionary for isolated word recognition mode.

If acoustic model is NOT a multi-path model, the output probabilities for the first frame (t=0) will also be computed in this function.

Parameters:

	param	[in] input vectors (only the first frame will be used)
	r	[in] recognition process instance

Definition at line 1534 of file beam.c.

boolean get_back_trellis_init	(	HTK_Param *	param,
		RecogProcess *	r
	)

Initialization of the frame synchronous beam search.

This function will initialize work area for the 1st pass. Generation of initial hypotheses will be performed in init_nodescore().

Parameters:

	param	[in] input vectors (only the first frame will be used)
	r	[i/o] recognition process instance

Definition at line 1763 of file beam.c.

Referenced by decode_proceed().

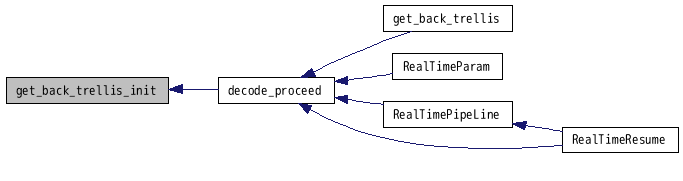

Here is the caller graph for this function:

static void propagate_token	(	FSBeam *	d,
		int	next_node,
		LOGPROB	next_score,
		TRELLIS_ATOM *	last_tre,
		WORD_ID	last_cword,
		LOGPROB	last_lscore
	)			`[static]`

Propagate a token to next node.

Parameters:

	d	[i/o] work area for 1st pass recognition processing
	next_node	[in] next node id
	next_score	[in] score when transmitted to the next node
	last_tre	[in] previous word context for the next node
	last_cword	[in] previous context-valid word for the next node
	last_lscore	[in] LM score to be propagated

Definition at line 1877 of file beam.c.

static void beam_intra_word_core	(	WCHMM_INFO *	wchmm,
		FSBeam *	d,
		TOKEN2 **	tk_ret,
		int	j,
		int	next_node,
		LOGPROB	next_a
	)			`[static]`

Word-internal transition for a set of nodes.

Parameters:

	wchmm	[in] tree lexicon
	d	[i/o] work area for the 1st pass
	tk_ret	[in] source token (if pointer updated, overwrite this)
	j	[in] the token ID of tk_ret
	next_node	[in] id of next node
	next_a	[in] transition probability

< Temporal work to hold the current node number on the lexicon tree

Definition at line 1933 of file beam.c.

static void beam_intra_word	(	WCHMM_INFO *	wchmm,
		FSBeam *	d,
		TOKEN2 **	tk_ret,
		int	j
	)			`[static]`

Word-internal transition.

Parameters:

	wchmm	[in] tree lexicon
	d	[i/o] work area for the 1st pass
	tk_ret	[in] source token (if pointer updated, overwrite this)
	j	[in] the token ID of tk_ret

< Temporal work to hold the next states of a node

Definition at line 2083 of file beam.c.

static TRELLIS_ATOM* save_trellis	(	BACKTRELLIS *	bt,
		WCHMM_INFO *	wchmm,
		TOKEN2 *	tk,
		int	t,
		boolean	final_for_multipath
	)			`[static]`

Store a new trellis word on the token.

Parameters:

	bt	[i/o] backtrellis data to save it
	wchmm	[in] tree lexicon
	tk	[in] source token at word edge
	t	[in] current time frame
	final_for_multipath	[in] TRUE if this is final frame

Returns:: pointer to the newly stored trellis word.

Definition at line 2138 of file beam.c.

static void beam_inter_word	(	WCHMM_INFO *	wchmm,
		FSBeam *	d,
		TOKEN2 **	tk_ret,
		TRELLIS_ATOM *	tre,
		int	j
	)			`[static]`

Cross-word transition processing from word-end token.

Parameters:

	wchmm	[in] tree lexicon
	d	[i/o] work area for the 1st pass
	tk_ret	[in] source token where the propagation is from
	tre	[in] the trellis word generated from tk_ret
	j	[in] the token ID of tk_ret

< Temporal pointer to hold inter-word cache array

Definition at line 2203 of file beam.c.

boolean get_back_trellis_proceed	(	int	t,
		HTK_Param *	param,
		RecogProcess *	r,
		boolean	final_for_multipath
	)

Frame synchronous beam search: proceed for 2nd frame and later.

This is the main function of beam search on the 1st pass. Given a input vector of a frame, it proceeds the computation for the one frame, and store the words survived in the beam width to the word trellis structure. get_back_trellis_init() should be used for the first frame. For detailed procedure, please see the comments in this function.

Parameters:

	t	[in] current frame to be computed in param
	param	[in] input vector structure (only the vector at t will be used)
	r	[in] recognition process instance
	final_for_multipath	[i/o] TRUE if this is last frame of an input

Returns:: TRUE if processing ended normally, or FALSE if the search was terminated (in case of short pause segmentation in successive decoding mode, or active nodes becomes zero).

< Local workarea to hold the generated trellis word

< Temporal work to hold the current node number on the lexicon tree

Definition at line 2558 of file beam.c.

Referenced by decode_proceed().

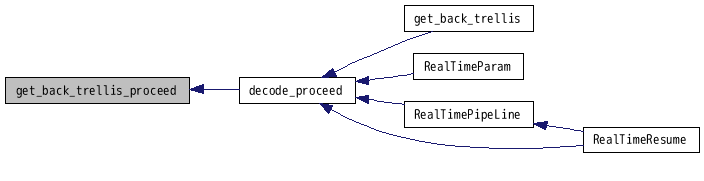

Here is the caller graph for this function:

void get_back_trellis_end	(	HTK_Param *	param,
		RecogProcess *	r
	)

Frame synchronous beam search: last frame.

This function should be called at the end of the 1st pass. The last procedure will be done for the (param->samplenum - 1) frame.

Parameters:

	param	[in] input vectors (only param->samplenum is referred)
	r	[in] recognition process instance

Definition at line 2905 of file beam.c.

Referenced by decode_end().

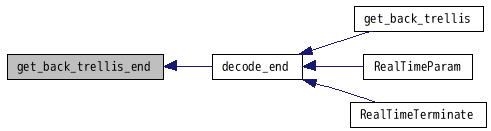

Here is the caller graph for this function:

void finalize_1st_pass	(	RecogProcess *	r,
		int	len
	)

Finalize the 1st pass.

This function will be called just after get_back_trellis_end() to finalize the 1st pass. It processes the resulting word trellis structure to be accessible from the 2nd pass, and output the best sentence hypothesis by backtracing the word trellis.

Parameters:

	r	[in] recoginirion process instance
	len	[in] total number of processed frames

Returns:: the maximum score of the best hypothesis, or LOG_ZERO if search failed.

Definition at line 2983 of file beam.c.

Referenced by decode_end(), and decode_end_segmented().

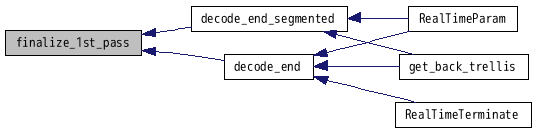

Here is the caller graph for this function:

void fsbeam_free ( FSBeam * d )

Free work area for the first pass.

Parameters:

[in] work are for 1st pass input handling

Definition at line 3029 of file beam.c.

Referenced by j_recogprocess_free().

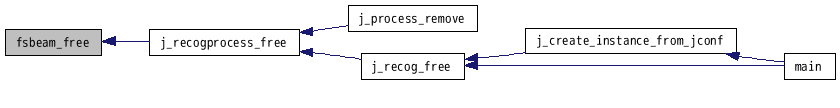

Here is the caller graph for this function:

libjulius/src/beam.c File Reference

Defines

Functions

Detailed Description

Function Documentation


Defines
#define	SD(A) tindex_local[A-1]
	Index locater for sort_token_*().
#define	SCOPY(D, S) D = S
	Content copier for sort_token_*().
#define	SVAL(A) (tlist_local[tindex_local[A-1]].score)
	Score locater for sort_token_*().
#define	STVAL (tlist_local[s].score)
	Indexed score locater for sort_token_*().
Functions
static void	put_atom (TRELLIS_ATOM atom, WORD_INFO winfo)
	Output a trellis word information in text (for debug).
static LOGPROB	trace_backptr (WORD_ID wordseq_rt[MAXSEQNUM], int rt_wordlen, TRELLIS_ATOM atom, WORD_INFO *winfo)
	Find the best word sequence in the word trellis.
static void	find_1pass_result (int framelen, RecogProcess *r)
	Find best path from the first pass result and set result status.
static int	compare_backscore (TRELLIS_ATOM x1, TRELLIS_ATOM x2)
	qsort function to sort trellis words by their score.
static void	find_1pass_result_word (int framelen, RecogProcess *r)
	Isolated word recognition version of find_1pass_result().
static void	bt_current_max (RecogProcess *r, int t)
	Output the current best word sequence ending at a specified time frame in the course of the 1st pass.
static void	bt_current_max_word (RecogProcess *r, int t)
	Output the current best word on a specified time frame in the course of the 1st pass.
static void	malloc_nodes (FSBeam *d, int n, int ntoken_init)
	Allocate initial work area for beam search on the 1st pass.
static void	expand_tlist (FSBeam *d)
	Re-allocate work area for beam search on the 1st pass.
static void	prepare_nodes (FSBeam *d, int ntoken_step)
	Clear nodes for the next input.
static void	free_nodes (FSBeam *d)
	Free all the work area for beam search on the 1st pass.
static void	clear_tlist (FSBeam *d, int tt)
	Reset the token space.
static void	clear_tokens (FSBeam *d, int tt)
	Clear the active token list.
static TOKENID	create_token (FSBeam *d)
	Assign a new token from token space.
static void	node_assign_token (FSBeam *d, int node, TOKENID tkid)
	Assign token to a node on tree lexicon.
static TOKENID	node_exist_token (FSBeam *d, int tt, int node, WORD_ID wid)
	Check if a node holds any token.
static void	sort_token_upward (FSBeam *d, int neednum, int totalnum)
	Sort the token space upward by score.
static void	sort_token_downward (FSBeam *d, int neednum, int totalnum)
	Sort the token space downward by score.
static void	sort_token_no_order (FSBeam d, int neednum, int start, int *end)
	Sort the token space to find which tokens to be survived in the beam.
static boolean	init_nodescore (HTK_Param param, RecogProcess r)
	Generate initial hypotheses.
boolean	get_back_trellis_init (HTK_Param param, RecogProcess r)
	Initialization of the frame synchronous beam search.
static void	propagate_token (FSBeam d, int next_node, LOGPROB next_score, TRELLIS_ATOM last_tre, WORD_ID last_cword, LOGPROB last_lscore)
	Propagate a token to next node.
static void	beam_intra_word_core (WCHMM_INFO wchmm, FSBeam d, TOKEN2 **tk_ret, int j, int next_node, LOGPROB next_a)
	Word-internal transition for a set of nodes.
static void	beam_intra_word (WCHMM_INFO wchmm, FSBeam d, TOKEN2 **tk_ret, int j)
	Word-internal transition.
static TRELLIS_ATOM *	save_trellis (BACKTRELLIS bt, WCHMM_INFO wchmm, TOKEN2 *tk, int t, boolean final_for_multipath)
	Store a new trellis word on the token.
static void	beam_inter_word (WCHMM_INFO wchmm, FSBeam d, TOKEN2 *tk_ret, TRELLIS_ATOM tre, int j)
	Cross-word transition processing from word-end token.
boolean	get_back_trellis_proceed (int t, HTK_Param param, RecogProcess r, boolean final_for_multipath)
	Frame synchronous beam search: proceed for 2nd frame and later.
void	get_back_trellis_end (HTK_Param param, RecogProcess r)
	Frame synchronous beam search: last frame.
void	finalize_1st_pass (RecogProcess *r, int len)
	Finalize the 1st pass.
void	fsbeam_free (FSBeam *d)
	Free work area for the first pass.
