HMM_Logical Struct Reference
[Context-Dependent HMM set]

Logical HMM to map logical names to physical/pseudo HMM. More...

#include <htk_hmm.h>

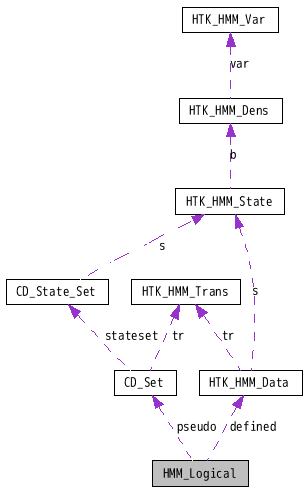

Collaboration diagram for HMM_Logical:

[legend]

Data Fields
char *	name
	Name string of this logical HMM.
boolean	is_pseudo
	TRUE if this is mapped to pseudo HMM.
union {
HTK_HMM_Data *   defined
	pointer to the mapped physical HMM
CD_Set *   pseudo
	pointer to the mapped pseudo HMM
}	body
struct _HMM_logical *	next
	Pointer to next data, NULL if last.

---

Detailed Description

Logical HMM to map logical names to physical/pseudo HMM.

This data maps logical HMM name to physical (defined) HMM or pseudo HMM. The logical HMM names are basically loaded from HMMList mapping file. Biphone/monophone HMM names, not listed in the HMMList file, are mapped to pseudo phones, which represents the context-dependent HMM set.

For example, if logical biphone HMM name "e-k" is defined in HMM definition file or its mapping is specified in the HMMList file, the Logical HMM name "e-k" will be mapped to the corresponding defined HMM. If "e-k" does not exist in both HMM definition file and HMMList file, triphones whose name matches "e-k+*" will be gathered to phone context-dependent HMM set "e-k", and the logical HMM name "e-k" will be mapped to this HMM set.

The context-dependent HMM is also called a "pseudo" phone in Julius.

Definition at line 272 of file htk_hmm.h.

---

The documentation for this struct was generated from the following file:

• libsent/include/sent/htk_hmm.h

---
