Recog Struct Reference

Top level instance for the whole recognition process. More...

#include <recog.h>

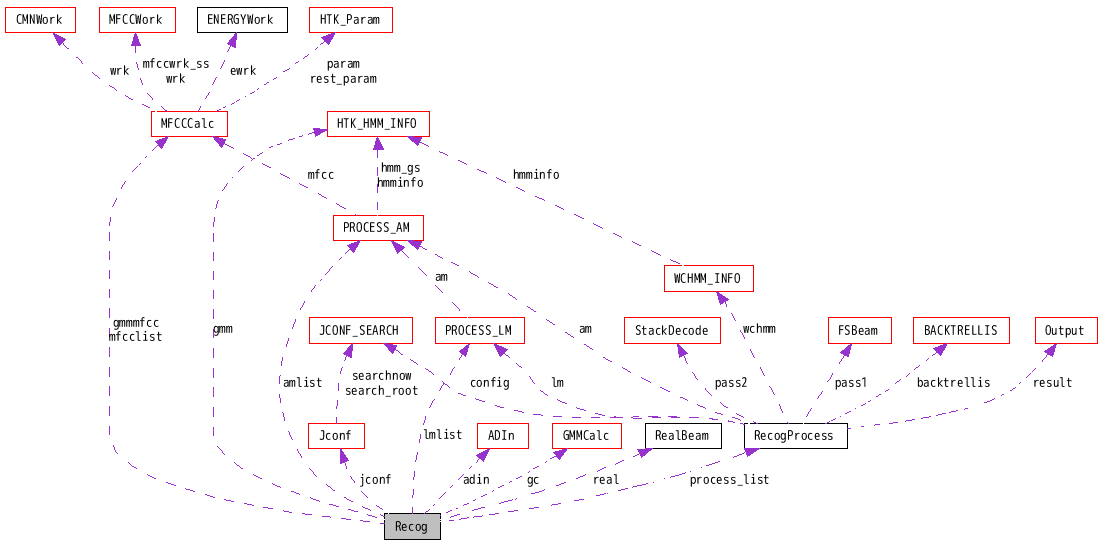

Collaboration diagram for Recog:


Data Fields
Jconf *	jconf
	User-specified configuration parameters.
ADIn *	adin
	A/D-in buffers.
RealBeam	real
	Work area for the realtime processing of first pass.
MFCCCalc *	mfcclist
	Linked list of MFCC calculation/reading instances.
PROCESS_AM *	amlist
	Linked list of acoustic model instances.
PROCESS_LM *	lmlist
	Linked list of language model instances.
RecogProcess *	process_list
	Linked list of recognition process instances.
boolean	process_segment
	TRUE when engine is processing a segment (for short-pause segmentation).
SP16 *	speech
	Input speech data.
int	speechalloclen
	Allocate length of speech.
int	speechlen
	Input length in samples.
int	peseqlen
	Input length in frames.
HTK_HMM_INFO *	gmm
	GMM definitions.
MFCCCalc *	gmmmfcc
	Pointer to MFCC instance for GMM.
GMMCalc *	gc
	Work area for GMM calculation.
boolean	process_active
	Status flag indicating whether the recognition is alive or not.
boolean	process_want_terminate
	If set to TRUE, Julius/Julian stops recognition immediately, terminating the currenct recognition process, and enter into disabled status.
boolean	process_want_reload
	If set to TRUE, Julius/Julian stops recognition softly.
short	gram_switch_input_method
	When to refresh the global lexicon if received while recognition for DFA.
boolean	process_online
	TRUE if audio stream is now open and engine is either listening audio stream or recognizing a speech.
boolean(*	calc_vector )(MFCCCalc , SP16 , int)
	Function pointer to parameter vector computation for realtime 1st pass.
boolean	triggered
	TRUE when recognition triggered and some recognition started, FALSE if engine terminated with no input.
void(*	callback_function [SIZEOF_CALLBACK_ID][MAX_CALLBACK_HOOK])()
	Callback entry point.
void *	callback_user_data [SIZEOF_CALLBACK_ID][MAX_CALLBACK_HOOK]
	Callback user data.
int	callback_function_num [SIZEOF_CALLBACK_ID]
	Numbers of callbacks registered.
int	callback_list_code [MAX_CALLBACK_HOOK *SIZEOF_CALLBACK_ID]
	Callback function code list.
int	callback_list_loc [MAX_CALLBACK_HOOK *SIZEOF_CALLBACK_ID]
	Callback function location list.
int	callback_num
	Number of callbacks.
void *	hook
	User-defined data hook.

Detailed Description

Top level instance for the whole recognition process.

Definition at line 933 of file recog.h.

Field Documentation

boolean Recog::process_active

Status flag indicating whether the recognition is alive or not.

If TRUE, the process is currently activated, either monitoring an audio input or recognizing the current input. If FALSE, the recognition is now disabled until some activation command has been arrived from client. While disabled, all the inputs are ignored.

If set to FALSE in the program, Julius/Julian will stop after the current recognition ends, and enter the disabled status.

Definition at line 1043 of file recog.h.

Referenced by adin_cut_callback_store_buffer(), j_recog_new(), j_request_pause(), j_request_resume(), j_request_terminate(), and schedule_grammar_update().

boolean Recog::process_want_reload

If set to TRUE, Julius/Julian stops recognition softly.

If it is performing recognition of the 1st pass, it immediately segments the current input, process the 2nd pass, and output the result. Then it enters the disabled status.

Definition at line 1059 of file recog.h.

Referenced by callback_check_in_adin(), j_process_activate(), j_process_activate_by_id(), j_process_add_lm(), j_process_am_remove(), j_process_deactivate(), j_process_deactivate_by_id(), j_process_lm_remove(), j_process_remove(), j_recog_new(), j_request_pause(), j_request_terminate(), j_reset_reload(), and schedule_grammar_update().
