#include <recog.h>

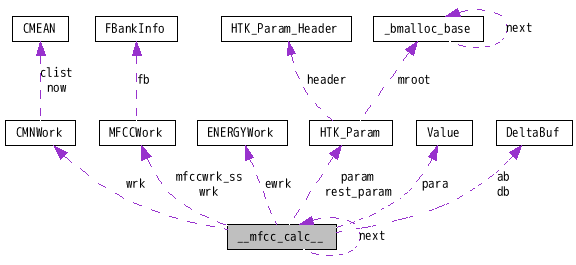

Collaboration diagram for __mfcc_calc__:
Data Fields | |
short | id |
Unique id. | |
Value * | para |
Parameter setting (entity in JCONF_AM). | |
boolean | htk_loaded |
TRUE if the para came from "-htkconf". | |
boolean | hmm_loaded |
TRUE if the para came from binhmm embedded header. | |
boolean | paramtype_check_flag |
Check input parameter type with header of the hmmdefs (-notypecheck to unset). | |
MFCCWork * | wrk |
Parameter extraction work area. | |
HTK_Param * | param |
Parameter vector sequence to be recognized. | |
HTK_Param * | rest_param |
Rest parameter for next segment for short-pause segmentation. | |
struct { | |
char * load_filename | |
CMN: load initial cepstral mean from file at startup (-cmnload). | |
boolean update | |
CMN: update cepstral mean while recognition (-cmnnoupdate to unset). | |
char * save_filename | |
CMN: save cepstral mean to file at end of every recognition (-cmnsave). | |
float map_weight | |
CMN: MAP weight for initial cepstral mean on (-cmnmapweight). | |
boolean loaded | |
TRUE if CMN parameter loaded from file at boot up. | |
CMNWork * wrk | |
realtime CMN work area | |
} | cmn |
Work area and setting for cepstral mean normalization. | |
struct { | |
float * ssbuf | |
Estimated noise spectrum. | |
int sslen | |
Length of ssbuf. | |
float ss_alpha | |
Alpha coefficient for spectral subtraction. | |
float ss_floor | |
Flooring coefficient for spectral subtraction. | |
boolean sscalc | |
SS: compute noise spectrum from head silence on file input (-sscalc). | |
int sscalc_len | |
With "-sscalc", specify noise length at input head in msec (-sscalclen). | |
char * ssload_filename | |
Load noise spectrum data from file (-ssload), that was made by "mkss". | |
MFCCWork * mfccwrk_ss | |
Parameter extraction work area for spectral subtraction. | |
} | frontend |
Work area for front-end processing. | |
ENERGYWork | ewrk |
work area for energy normalization on real time processing | |
DeltaBuf * | db |
delta MFCC cycle buffer | |
DeltaBuf * | ab |
accel MFCC cycle buffer | |
VECT * | tmpmfcc |
working buffer holding current computing mfcc vector | |
boolean | valid |
FALSE indicates that the current frame (f) is not valid and should not be used for recognition. | |
int | f |
Current frame. | |
int | last_time |
Processed frame length when segmented. | |
int | sparea_start |
Re-start frame if segmenetd. | |
boolean | segmented |
TRUE if a parent instance has decided segmented. | |
boolean | segmented_by_input |
TRUE if an input functionhas decided segmented. | |
int | plugin_source |
id of an plugin module if MFCC should be obtained via plugin | |
struct { | |
boolean(* fv_standby )() | |
Pointer to function for device initialization (call once on startup). | |
boolean(* fv_begin )() | |
Pointer to function to open audio stream for capturing. | |
int(* fv_read )(VECT *, int) | |
Pointer to function to read samples. | |
boolean(* fv_end )() | |
Pointer to function to close audio stream capturing. | |
boolean(* fv_resume )() | |
Pointer to function to begin / restart recording. | |
boolean(* fv_pause )() | |
Pointer to function to pause recording. | |
boolean(* fv_terminate )() | |
Pointer to function to terminate current recording immediately. | |
} | func |
Function entry points for plugin input. | |
__mfcc_calc__ * | next |
pointer to next |
Definition at line 470 of file recog.h.
