libjulius/src/wchmm.c File Reference

Construction of tree lexicon. More...

#include <julius/julius.h>

Go to the source code of this file.

Defines

#define WCHMM_SIZE_CHECK
 If defined, do wchmm size estimation (for debug only).
#define COUNT_STEP   500
 Word count step for debug progress output.

Functions

WCHMM_INFO * wchmm_new ()
 Allocate a new tree lexicon structure.
static void wchmm_init (WCHMM_INFO *wchmm)
 Initialize content of a lexicon tree.
static void wchmm_extend (WCHMM_INFO *wchmm)
 Expand state-related area in a tree lexicon by MAXWCNSTEP.
static void wchmm_extend_startnode (WCHMM_INFO *wchmm)
 Expand word-start nodes area in a tree lexicon by STARTNODE_STEP.
void wchmm_free (WCHMM_INFO *w)
 Free all data in a tree lexicon.
static int compare_wseq (WORD_ID *widx1, WORD_ID *widx2, WORD_INFO *winfo)
 qsort_reentrant function to sort words by their phoneme sequence.
static void wchmm_sort_idx_by_wseq (WORD_INFO *winfo, WORD_ID *windex, WORD_ID bgn, WORD_ID len)
 Sort word IDs in windex[bgn.
static int compare_category (WORD_ID *widx1, WORD_ID *widx2, WORD_INFO *winfo)
 qsort function to sort words by their category ID.
static void wchmm_sort_idx_by_category (WORD_INFO *winfo, WORD_ID *windex, WORD_ID len)
 Sort word IDs in windex[0.
static int wchmm_check_match (WORD_INFO *winfo, int i, int j)
 Compare two words from word head per phoneme to see how many phones can be shared among the two.
static void acc_init (WCHMM_INFO *wchmm, int node)
 Initialize transition information on a node.
static void add_ac (WCHMM_INFO *wchmm, int node, LOGPROB a, int arc)
 Add an arc to a node.
static void add_wacc (WCHMM_INFO *wchmm, int node, LOGPROB a, int arc)
 Add a transition arc between two nodes on the tree lexicon.
static void get_outtrans_list (WCHMM_INFO *wchmm, WORD_ID w, int pos, int *node, LOGPROB *a, int *num, int maxnum, boolean insert_sp)
 Make outgoing transition list for given phone position of a word.
static void wchmm_link_hmm (WCHMM_INFO *wchmm, int from_node, int to_node, HTK_HMM_Trans *tinfo)
 Add a transition from end node of a phone to start node of another phone.
static void wchmm_link_subword (WCHMM_INFO *wchmm, int from_word, int from_seq, int to_word, int to_seq)
 Connect two phonemes in tree lexicon.
static void wchmm_duplicate_state (WCHMM_INFO *wchmm, int node, int word)
 Isolation of word-end nodes for homophones: duplicate the word-end state, link as the same as original, and make it the new word-end node of the given new word.
static int wchmm_duplicate_leafnode (WCHMM_INFO *wchmm)
 Scan the whole lexicon tree to find already registered homophones, and make word-end nodes of the found homophones isolated from others.
static boolean wchmm_add_word (WCHMM_INFO *wchmm, int word, int matchlen, int matchword, boolean enable_iwsp)
 Add a new word to the lexicon tree.
static void wchmm_calc_wordend_arc (WCHMM_INFO *wchmm)
 Scan the lexicon tree to make list of emission probability from the word end state.
static int compare_prob (LOGPROB *a, LOGPROB *b)
 qsort callback function to sort unigram values.
static LOGPROB get_nbest_uniprob (WCHMM_INFO *wchmm, int n)
 Get the Nth-best unigram probability from all words.
boolean build_wchmm (WCHMM_INFO *wchmm, JCONF_LM *lmconf)
 Build a tree lexicon from given word dictionary and language model.
boolean build_wchmm2 (WCHMM_INFO *wchmm, JCONF_LM *lmconf)
 Build a tree lexicon from given word dictionary and language model.
void print_wchmm_info (WCHMM_INFO *wchmm)
 Output some specifications of the tree lexicon (size etc.

Detailed Description

Construction of tree lexicon.

Functions to build a tree lexicon (or called word-conjunction HMM here) from word dictionary, HMM and language models are defined here. The constructed tree lexicon will be used for the recognition of the 1st pass. The lexicon is composed per HMM state unit, and various informations about output probabilities, arcs, language model constraints, and others are assembled in the lexicon.

Note that the word "wchmm" in the source code is a synonim of "tree lexicon".

Author:
Akinobu Lee
Date:
Mon Sep 19 23:39:15 2005
Revision
1.7

Definition in file wchmm.c.

Function Documentation

WCHMM_INFO* wchmm_new (  )

Allocate a new tree lexicon structure.

Returns:
pointer to the newly allocated tree lexicon structure.

Definition at line 70 of file wchmm.c.

Referenced by j_launch_recognition_instance(), and multigram_rebuild_wchmm().

Here is the caller graph for this function:

static void wchmm_init ( WCHMM_INFO *  wchmm  )  [static]

Initialize content of a lexicon tree.

Parameters:
wchmm [out] pointer to the lexicon tree structure

Definition at line 104 of file wchmm.c.

Referenced by build_wchmm(), and build_wchmm2().

static void wchmm_extend ( WCHMM_INFO *  wchmm  )  [static]

Expand state-related area in a tree lexicon by MAXWCNSTEP.

Parameters:
wchmm [i/o] tree lexicon

Definition at line 162 of file wchmm.c.

Referenced by wchmm_add_word(), and wchmm_duplicate_state().

static void wchmm_extend_startnode ( WCHMM_INFO *  wchmm  )  [static]

Expand word-start nodes area in a tree lexicon by STARTNODE_STEP.

(multipath)

Parameters:
wchmm [i/o] tree lexicon

Definition at line 189 of file wchmm.c.

Referenced by wchmm_add_word(), and wchmm_duplicate_state().

void wchmm_free ( WCHMM_INFO *  w  )

Free all data in a tree lexicon.

Parameters:
w [in] tree lexicon

Definition at line 213 of file wchmm.c.

Referenced by j_recogprocess_free(), and multigram_rebuild_wchmm().

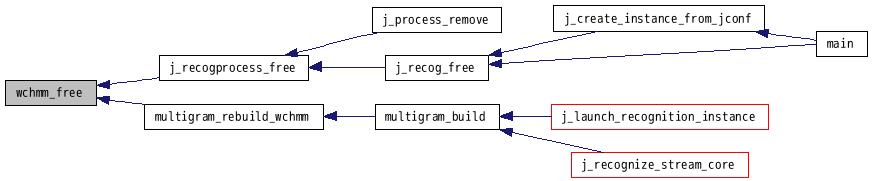

Here is the caller graph for this function:

static int compare_wseq ( WORD_ID *  widx1,
WORD_ID *  widx2,
WORD_INFO *  winfo
) [static]

qsort_reentrant function to sort words by their phoneme sequence.

Parameters:
widx1 [in] pointer to word id #1
widx2 [in] pointer to wrod id #2
Returns:
1 if word[widx2] is part of word[widx1], -1 if word[widx1] is part of word[widx2], or 0 if the two words are equal.

Definition at line 298 of file wchmm.c.

Referenced by wchmm_sort_idx_by_wseq().

static void wchmm_sort_idx_by_wseq ( WORD_INFO *  winfo,
WORD_ID *  windex,
WORD_ID  bgn,
WORD_ID  len
) [static]

Sort word IDs in windex[bgn.

.bgn+len-1] by their phoneme sequence order.

Parameters:
winfo [in] word lexicon
windex [i/o] index sequence of word IDs, (will be sorted in this function)
bgn [in] start point to sort in windex
len [in] length of indexes to be sorted from bgn

Definition at line 347 of file wchmm.c.

Referenced by build_wchmm2().

static int compare_category ( WORD_ID *  widx1,
WORD_ID *  widx2,
WORD_INFO *  winfo
) [static]

qsort function to sort words by their category ID.

Parameters:
widx1 [in] pointer to element #1
widx2 [in] pointer to element #2
Returns:

Definition at line 371 of file wchmm.c.

Referenced by wchmm_sort_idx_by_category().

static void wchmm_sort_idx_by_category ( WORD_INFO *  winfo,
WORD_ID *  windex,
WORD_ID  len
) [static]

Sort word IDs in windex[0.

.len-1] by their category ID.

Parameters:
winfo [in] tree lexicon
windex [i/o] index sequence of word IDs, (will be sorted in this function)
len [in] number of elements in windex

Definition at line 396 of file wchmm.c.

Referenced by build_wchmm2().

static int wchmm_check_match ( WORD_INFO *  winfo,
int  i,
int  j
) [static]

Compare two words from word head per phoneme to see how many phones can be shared among the two.

Parameters:
winfo [in] word dictionary
i [in] a word
j [in] another word
Returns:
the number of phonemes to be shared from the head of the words.

Definition at line 428 of file wchmm.c.

static void acc_init ( WCHMM_INFO *  wchmm,
int  node
) [static]

Initialize transition information on a node.

Parameters:
wchmm [i/o] tree lexicon
node [in] node id

Definition at line 455 of file wchmm.c.

Referenced by wchmm_add_word(), and wchmm_duplicate_state().

static void add_ac ( WCHMM_INFO *  wchmm,
int  node,
LOGPROB  a,
int  arc
) [static]

Add an arc to a node.

This function is for transition other than self and next node.

Parameters:
wchmm [i/o] tree lexicon
node [in] node id
a [in] transition probability in log10
arc [in] transition destination node id

Definition at line 479 of file wchmm.c.

Referenced by add_wacc().

static void add_wacc ( WCHMM_INFO *  wchmm,
int  node,
LOGPROB  a,
int  arc
) [static]

Add a transition arc between two nodes on the tree lexicon.

Parameters:
wchmm [i/o] tree lexicon
node [in] node number of source node
a [in] transition probability in log scale
arc [in] node number of destination node

Definition at line 516 of file wchmm.c.

Referenced by wchmm_duplicate_state(), and wchmm_link_hmm().

static void get_outtrans_list ( WCHMM_INFO *  wchmm,
WORD_ID  w,
int  pos,
int *  node,
LOGPROB *  a,
int *  num,
int  maxnum,
boolean  insert_sp
) [static]

Make outgoing transition list for given phone position of a word.

(multipath)

Parameters:
wchmm [in] tree lexicon
w [in] word ID
pos [in] location of target phone to be inspected in the word w
node [out] list of wchmm states that possibly has outgoing transition
a [out] transition probabilities of the outgoing transitions in node
num [out] number of elements in out (found num will be added)
maxnum [in] maximum number of elements that can be stored in node
insert_sp [in] TRUE if consider short-pause insertion on word end

Definition at line 554 of file wchmm.c.

Referenced by wchmm_add_word().

static void wchmm_link_hmm ( WCHMM_INFO *  wchmm,
int  from_node,
int  to_node,
HTK_HMM_Trans *  tinfo
) [static]

Add a transition from end node of a phone to start node of another phone.

Parameters:
wchmm [i/o] tree lexicon
from_node [in] end node of a phone
to_node [in] start node of a phone
tinfo [in] transition prob. matrix of the from_node phone.

Definition at line 640 of file wchmm.c.

Referenced by wchmm_link_subword().

static void wchmm_link_subword ( WCHMM_INFO *  wchmm,
int  from_word,
int  from_seq,
int  to_word,
int  to_seq
) [static]

Connect two phonemes in tree lexicon.

Parameters:
wchmm [i/o] tree lexicon
from_word [in] source word ID
from_seq [in] index of source phoneme in from_word from which the other will be connected
to_word [in] destination word ID
to_seq [in] index of destination phoneme in to_word to which the other will connect

Definition at line 697 of file wchmm.c.

static void wchmm_duplicate_state ( WCHMM_INFO *  wchmm,
int  node,
int  word
) [static]

Isolation of word-end nodes for homophones: duplicate the word-end state, link as the same as original, and make it the new word-end node of the given new word.

Parameters:
wchmm [i/o] tree lexicon
node [in] the word end node of the already existing homophone
word [in] word ID to be added to the tree

Definition at line 752 of file wchmm.c.

Referenced by wchmm_duplicate_leafnode().

static int wchmm_duplicate_leafnode ( WCHMM_INFO *  wchmm  )  [static]

Scan the whole lexicon tree to find already registered homophones, and make word-end nodes of the found homophones isolated from others.

Parameters:
wchmm [i/o] tree lexicon

Definition at line 882 of file wchmm.c.

static boolean wchmm_add_word ( WCHMM_INFO *  wchmm,
int  word,
int  matchlen,
int  matchword,
boolean  enable_iwsp
) [static]

Add a new word to the lexicon tree.

The longest matched word in the current lexicon tree and the length of the matched phoneme from the word head should be specified to tell where to insert the new word to the tree.

Parameters:
wchmm [i/o] tree lexicon
word [in] word id to be added to the lexicon
matchlen [in] phoneme match length between word and matchword.
matchword [in] the longest matched word with word in the current lexicon tree
enable_iwsp [in] should be TRUE when using inter-word short pause option

Definition at line 970 of file wchmm.c.

Referenced by build_wchmm().

static void wchmm_calc_wordend_arc ( WCHMM_INFO *  wchmm  )  [static]

Scan the lexicon tree to make list of emission probability from the word end state.

(non multipath)

Parameters:
wchmm [i/o] tree lexicon

Definition at line 1417 of file wchmm.c.

static int compare_prob ( LOGPROB *  a,
LOGPROB *  b
) [static]

qsort callback function to sort unigram values.

Parameters:
a [in] element #1
b [in] element #2
Returns:
the result of comparison.

Definition at line 1455 of file wchmm.c.

static LOGPROB get_nbest_uniprob ( WCHMM_INFO *  wchmm,
int  n
) [static]

Get the Nth-best unigram probability from all words.

Parameters:
winfo [in] word dictionary
n [in] required rank
Returns:
the Nth-best unigram probability.

Definition at line 1481 of file wchmm.c.

Referenced by build_wchmm(), and build_wchmm2().

boolean build_wchmm ( WCHMM_INFO *  wchmm,
JCONF_LM *  lmconf
)

Build a tree lexicon from given word dictionary and language model.

This function is slow and only used when "-oldtree" option is specified in Julian. Julian without that option and Julius uses build_wchmm2() instead of this.

Parameters:
wchmm [i/o] lexicon tree
lmconf [in] language model (LM) configuration parameters

Definition at line 1553 of file wchmm.c.

Referenced by j_launch_recognition_instance(), and multigram_rebuild_wchmm().

Here is the caller graph for this function:

boolean build_wchmm2 ( WCHMM_INFO *  wchmm,
JCONF_LM *  lmconf
)

Build a tree lexicon from given word dictionary and language model.

This function does the same job as build_wchmm(), but it is much faster because finding of the longest matched word to an adding word is done by first sorting all the words in the dictoinary by their phoneme sequence order. This function will be used instead of build_wchmm() by default.

Parameters:
wchmm [i/o] lexicon tree
lmconf [in] language model (LM) configuration parameters

Definition at line 1766 of file wchmm.c.

Referenced by j_launch_recognition_instance(), and multigram_rebuild_wchmm().

Here is the caller graph for this function:

void print_wchmm_info ( WCHMM_INFO *  wchmm  )

Output some specifications of the tree lexicon (size etc.

) to stdout.

Parameters:
wchmm [in] tree lexicon already built

Definition at line 2102 of file wchmm.c.

Generated on Thu Jul 23 12:14:17 2009 for Julius by  doxygen 1.5.1
