dfa.h File Reference

Definitions for DFA grammar and category-pair information. More...

#include <sent/stddefs.h>
#include <sent/vocabulary.h>
#include <sent/htk_hmm.h>

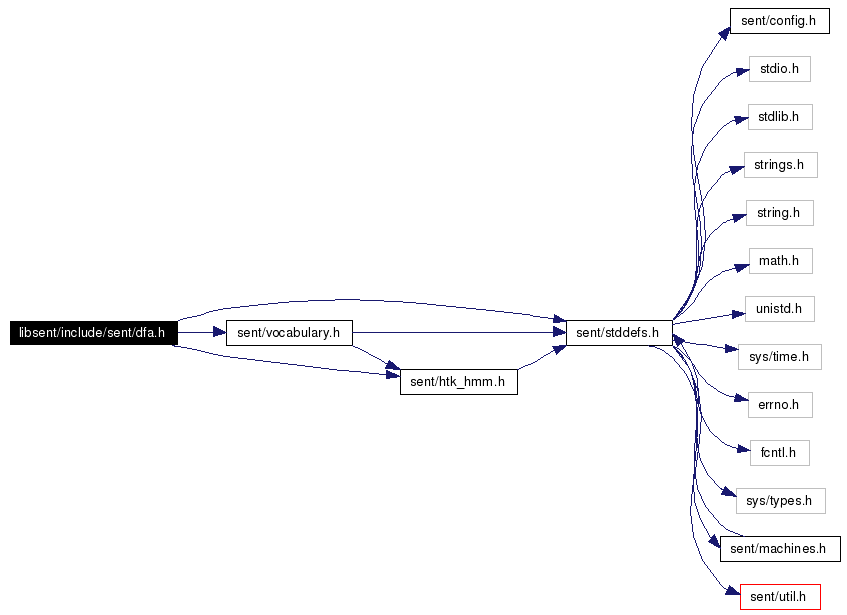

Include dependency graph for dfa.h:

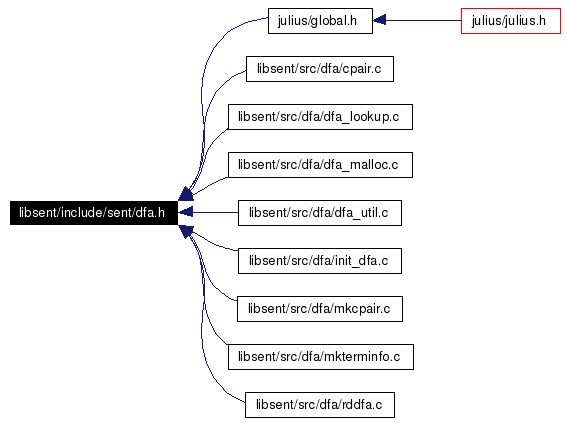

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	DFA_STATESTEP   1000
	Allocation step of DFA state.
#define	INITIAL_S   0x10000000
	Status flag mask specifying an initial state.
#define	ACCEPT_S   0x00000001
	Status flag mask specifying an accept state.
Typedefs
typedef _dfa_arc	DFA_ARC
	Transition arc of DFA.
Functions
DFA_INFO *	dfa_info_new ()
void	dfa_info_free (DFA_INFO *dfa)
void	dfa_state_init (DFA_INFO *dinfo)
void	dfa_state_expand (DFA_INFO *dinfo, int needed)
boolean	rddfa (FILE *fp, DFA_INFO *dinfo)
boolean	rddfa_fd (int fd, DFA_INFO *dinfo)
boolean	rddfa_sd (int sd, DFA_INFO *dinfo)
boolean	rddfa_line (char *line, DFA_INFO *dinfo, int *state_max, int *arc_num, int *terminal_max)
void	dfa_append (DFA_INFO *dst, DFA_INFO *src, int soffset, int coffset)
void	init_dfa (DFA_INFO *dinfo, char *filename)
WORD_ID	dfa_symbol_lookup (DFA_INFO *dinfo, char *terminalname)
void	extract_cpair (DFA_INFO *dinfo)
void	cpair_append (DFA_INFO *dst, DFA_INFO *src, int coffset)
void	print_dfa_info (DFA_INFO *dinfo)
void	print_dfa_cp (DFA_INFO *dinfo)
boolean	dfa_cp (DFA_INFO *dfa, int i, int j)
boolean	dfa_cp_begin (DFA_INFO *dfa, int i)
boolean	dfa_cp_end (DFA_INFO *dfa, int i)
void	set_dfa_cp (DFA_INFO *dfa, int i, int j, boolean value)
void	set_dfa_cp_begin (DFA_INFO *dfa, int i, boolean value)
void	set_dfa_cp_end (DFA_INFO *dfa, int i, boolean value)
void	init_dfa_cp (DFA_INFO *dfa)
void	malloc_dfa_cp (DFA_INFO *dfa, int term_num)
void	realloc_dfa_cp (DFA_INFO *dfa, int old_term_num, int new_term_num)
void	free_dfa_cp (DFA_INFO *dfa)
void	make_dfa_voca_ref (DFA_INFO *dinfo, WORD_INFO *winfo)
void	make_terminfo (TERM_INFO *tinfo, DFA_INFO *dinfo, WORD_INFO *winfo)
void	terminfo_append (TERM_INFO *dst, TERM_INFO *src, int coffset, int woffset)
void	dfa_find_pause_word (DFA_INFO *dfa, WORD_INFO *winfo, HTK_HMM_INFO *hmminfo)
void	dfa_pause_word_append (DFA_INFO *dst, DFA_INFO *src, int coffset)

---

Detailed Description

Definitions for DFA grammar and category-pair information.

Author:

Akinobu LEE

Date:

Thu Feb 10 18:21:27 2005

This file includes definitions for a finite state grammar called DFA.

DFA is a deterministic finite state automaton describing grammartical constraint, using the category number of each dictionary word as an input. It also holds lists of words belonging for each categories.

Additionaly, the category-pair information will be generated from the given DFA by extracting allowed connections between categories. It will be used as a degenerated constraint of word connection at the 1st pass.

Revision

1.1.1.1

Definition in file dfa.h.

---

Function Documentation

DFA_INFO* dfa_info_new (   )

Allocate a new grammar information data structure and initialize it. Returns: pointer to the newly allocated DFA_INFO. Definition at line 33 of file dfa_malloc.c.

void dfa_info_free (  DFA_INFO *  dfa  )

Free all informations in the DFA_INFO. Parameters: dfa  [i/o] grammar information data to be freed. Definition at line 54 of file dfa_malloc.c.

void dfa_state_init (  DFA_INFO *  dinfo  )

Initialize and allocate DFA state information list in the grammar. Parameters: dinfo  [i/o] DFA grammar Definition at line 35 of file rddfa.c. Referenced by rddfa(), rddfa_fd(), and rddfa_sd().

void dfa_state_expand (  DFA_INFO *  dinfo, int  needed )

Expand the state information list to the required length. Parameters: dinfo  [i/o] DFA grammar needed  [in] required new length Definition at line 56 of file rddfa.c. Referenced by dfa_append(), and rddfa_line().

boolean rddfa (  FILE *  fp, DFA_INFO *  dinfo )

Top loop function to read DFA grammar via file pointer Parameters: fp  [in] file pointer that points to the DFA grammar data dinfo  [out] the read data will be stored in this DFA grammar structure Returns: TRUE on success, FALSE on failure. Definition at line 79 of file rddfa.c. Referenced by init_dfa().

boolean rddfa_fd (  int  fd, DFA_INFO *  dinfo )

Top loop function to read DFA grammar via file descriptor Parameters: fd  [in] file descriptor that points to the DFA grammar data dinfo  [out] the read data will be stored in this DFA grammar structure Returns: TRUE on success, FALSE on failure. Definition at line 109 of file rddfa.c.

boolean rddfa_sd (  int  sd, DFA_INFO *  dinfo )

Top loop function to read DFA grammar via socket descriptor Parameters: sd  [in] socket descriptor that points to the DFA grammar data dinfo  [out] the read data will be stored in this DFA grammar structure Returns: TRUE on success, FALSE on failure. Definition at line 139 of file rddfa.c.

boolean rddfa_line (  char *  line, DFA_INFO *  dinfo, int *  state_max, int *  arc_num, int *  terminal_max )

Parse the input line and set grammar information, one by line. Parameters: line  [in] text buffer that holds a line of DFA file dinfo  [i/o] the read data will be appended to this DFA data state_max  [i/o] maximum number of state id appeared, will be updated arc_num  [i/o] number of read arcs, will be updated terminal_max  [i/o] maximum number of state id appended, will be updated Returns: TRUE if the line was successfully parsed, FALSE if failed. Definition at line 172 of file rddfa.c. Referenced by rddfa(), rddfa_fd(), and rddfa_sd().

void dfa_append (  DFA_INFO *  dst, DFA_INFO *  src, int  soffset, int  coffset )

Append the DFA state information to other Parameters: dst  [i/o] DFA grammar src  [i/o] DFA grammar to be appended to dst soffset  [in] offset state number in dst where the new state should be stored coffset  [in] category id offset in dst where the new data should be stored Definition at line 230 of file rddfa.c.

void init_dfa (  DFA_INFO *  dinfo, char *  filename )

Read in a grammar file and set to DFA grammar structure Parameters: dinfo  [i/o] a blank DFA data filename  [in] DFA grammar file name Definition at line 45 of file init_dfa.c.

WORD_ID dfa_symbol_lookup (  DFA_INFO *  dinfo, char *  terminalname )

Return category id corresponding to the given terminal name. Actually they are mere strings of ID itself. Parameters: dinfo  [in] DFA grammar information terminalname  [in] name string Returns: the category id. Definition at line 44 of file dfa_lookup.c. Referenced by make_dfa_voca_ref().

void extract_cpair (  DFA_INFO *  dinfo  )

Extract category-pair constraint from DFA grammar and newly set the category pair matrix of the give DFA. Parameters: dinfo  [i/o] DFA grammar, in which the category-pair matrix will be created. Definition at line 60 of file mkcpair.c.

void cpair_append (  DFA_INFO *  dst, DFA_INFO *  src, int  coffset )

Append the category pair matrix at the last. Parameters: dst  [i/o] DFA grammar src  [in] DFA grammar to be appended to dst coffset  [in] category id in dst where the new data should be stored Definition at line 113 of file mkcpair.c.

void print_dfa_info (  DFA_INFO *  dinfo  )

Output overall grammar information to stdout. Parameters: dinfo  [in] DFA grammar Definition at line 33 of file dfa_util.c. Referenced by print_info().

void print_dfa_cp (  DFA_INFO *  dinfo  )

Output the category-pair matrix in text format to stdout Parameters: dinfo  [in] DFA grammar that holds category pair matrix Definition at line 48 of file dfa_util.c. Referenced by print_info().

boolean dfa_cp (  DFA_INFO *  dfa, int  i, int  j )

Return whether the given two category can be connected or not. Parameters: dfa  [in] DFA grammar holding category pair matrix i  [in] category id of left word j  [in] category id of right word Returns: TRUE if connection is allowed by the grammar, FALSE if prohibited. Definition at line 48 of file cpair.c. Referenced by cpair_append(), get_back_trellis_proceed(), and print_dfa_cp().

boolean dfa_cp_begin (  DFA_INFO *  dfa, int  i )

Return whether the category can be appear at the beginning of sentence. Parameters: dfa  [in] DFA grammar holding category pair matrix i  [in] category id of the word Returns: TRUE if it can appear at the beginning of sentence, FALSE if not. Definition at line 63 of file cpair.c. Referenced by cpair_append(), init_nodescore(), and print_dfa_cp().

boolean dfa_cp_end (  DFA_INFO *  dfa, int  i )

Return whether the category can be appear at the end of sentence. Parameters: dfa  [in] DFA grammar holding category pair matrix i  [in] category id of the word Returns: TRUE if it can appear at the end of sentence, FALSE if not. Definition at line 78 of file cpair.c. Referenced by cpair_append(), and print_dfa_cp().

void set_dfa_cp (  DFA_INFO *  dfa, int  i, int  j, boolean  value )

Set the category-pair matrix bit Parameters: dfa  [out] DFA grammar holding category pair matrix i  [in] category id of left word j  [in] category id of right word value  TRUE if connection allowed, FALSE if connection prohibited. Definition at line 93 of file cpair.c. Referenced by cpair_append(), extract_cpair(), malloc_dfa_cp(), and realloc_dfa_cp().

void set_dfa_cp_begin (  DFA_INFO *  dfa, int  i, boolean  value )

Set the category-pair matrix bit at the beginning of sentence Parameters: dfa  [out] DFA grammar holding category pair matrix i  [in] category id of the word value  TRUE if the category can appear at the beginning of sentence, FALSE if not. Definition at line 112 of file cpair.c. Referenced by cpair_append(), extract_cpair(), malloc_dfa_cp(), and realloc_dfa_cp().

void set_dfa_cp_end (  DFA_INFO *  dfa, int  i, boolean  value )

Set the category-pair matrix bit at the end of sentence Parameters: dfa  [out] DFA grammar holding category pair matrix i  [in] category id of the word value  TRUE if the category can appear at the end of sentence, FALSE if not. Definition at line 131 of file cpair.c. Referenced by cpair_append(), extract_cpair(), malloc_dfa_cp(), and realloc_dfa_cp().

void init_dfa_cp (  DFA_INFO *  dfa  )

Initialize category pair matrix in the grammar data. Parameters: dfa  [out] DFA grammar to hold category pair matrix Definition at line 147 of file cpair.c. Referenced by dfa_info_new().

void malloc_dfa_cp (  DFA_INFO *  dfa, int  term_num )

Allocate memory for category pair matrix and initialize it. Parameters: dfa  [out] DFA grammar to hold category pair matrix term_num  [in] number of categories in the grammar Definition at line 162 of file cpair.c. Referenced by extract_cpair(), and realloc_dfa_cp().

void realloc_dfa_cp (  DFA_INFO *  dfa, int  old_term_num, int  new_term_num )

Re-allocate memory for category pair matrix, can be called when the number of category is expanded. Parameters: dfa  [I/O] DFA grammar holding category pair matrix old_term_num  [in] number of categories when the last category pair matrix was allocated new_term_num  [in] new number of categories in the grammar Definition at line 193 of file cpair.c. Referenced by cpair_append().

void free_dfa_cp (  DFA_INFO *  dfa  )

Free the category pair matrix from DFA grammar. Parameters: dfa  [i/o] DFA grammar holding category pair matrix Definition at line 254 of file cpair.c. Referenced by dfa_info_free().

void make_dfa_voca_ref (  DFA_INFO *  dinfo, WORD_INFO *  winfo )

Make correspondence between all words in dictionary and categories in grammar, both from a word to a category and from a category to words. Parameters: dinfo  [i/o] DFA grammar, category information will be built here. winfo  [i/o] Word dictionary, word-to-category information will be build here. Definition at line 71 of file init_dfa.c.

void make_terminfo (  TERM_INFO *  tinfo, DFA_INFO *  dinfo, WORD_INFO *  winfo )

Make a word list for each category. Parameters: tinfo  [i/o] terminal data structure to hold the result dinfo  [in] DFA gammar to supply the number of category in the grammar winfo  [in] word dictionary. Definition at line 38 of file mkterminfo.c. Referenced by make_dfa_voca_ref().

void terminfo_append (  TERM_INFO *  dst, TERM_INFO *  src, int  coffset, int  woffset )

Append the terminal(category) word list. Parameters: dst  [i/o] category data src  [i/o] category data to be appended to dst coffset  [in] category id offset in dst where the new data should be stored woffset  [in] word id offset where the new data should be stored Definition at line 76 of file mkterminfo.c.

void dfa_find_pause_word (  DFA_INFO *  dfa, WORD_INFO *  winfo, HTK_HMM_INFO *  hmminfo )

Find pause word and pause category information, and set to the grammar data. Parameters: dfa  [i/o] DFA grammar, sp_id and is_sp will be built here. winfo  [in] Word dictionary hmminfo  [in] HTK HMM to provide which is short pause HMM Definition at line 104 of file init_dfa.c.

void dfa_pause_word_append (  DFA_INFO *  dst, DFA_INFO *  src, int  coffset )

Append the pause word/category information at the last. Parameters: dst  [i/o] DFA grammar src  [in] DFA grammar to be appended to dst coffset  appending category point in dst Definition at line 135 of file init_dfa.c.

---
